Hi Shorty,

I've just figured out the keel / centerboard arrangement, with some weight down low in the centerboard for added stability. The ballast displacement ratio is 25%. Still don't know how much of that 309 lbs is in the centerboard and how much in the stub keel.

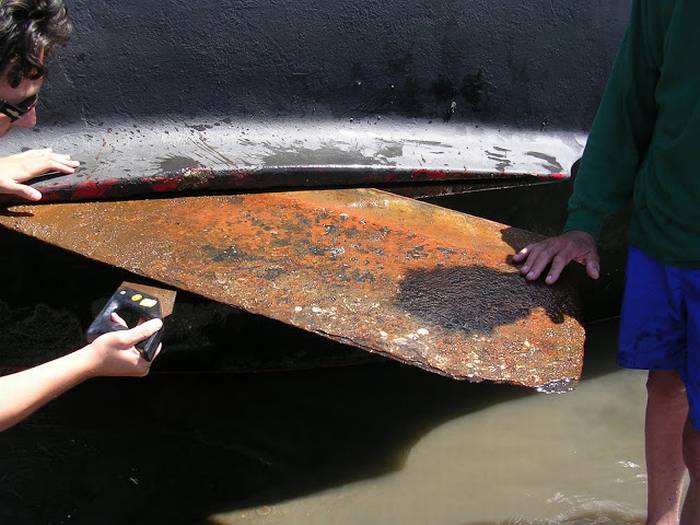

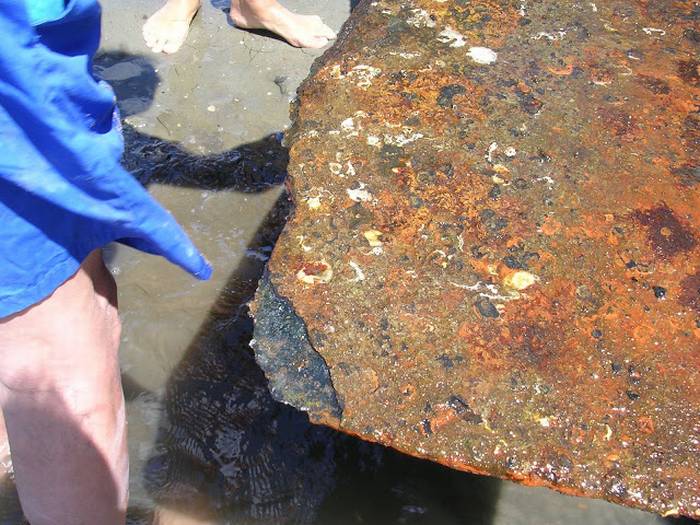

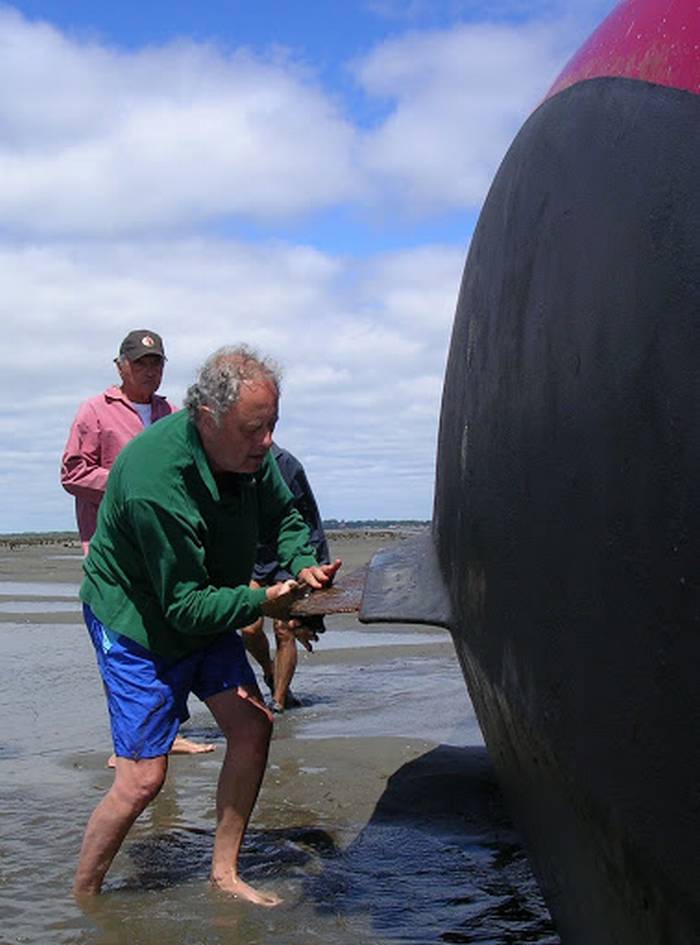

Here are some photos of a rusted centerboard and centerboard raising mechanism diagram http://association590.pagesperso-orange.fr/articleDerive/derive.html

The line from the cockpit winds around an 8" to 10" spool in the cabin which in turn is attached to a 2" to 3" spool that has the line to the centerboard. Picture in you mind the gearing on a bicycle. Some owners have added leverage by running the line through a series of blocks at the forward end of the centerboard case. The draft is 20 inches with the centerboard up.

Burt
